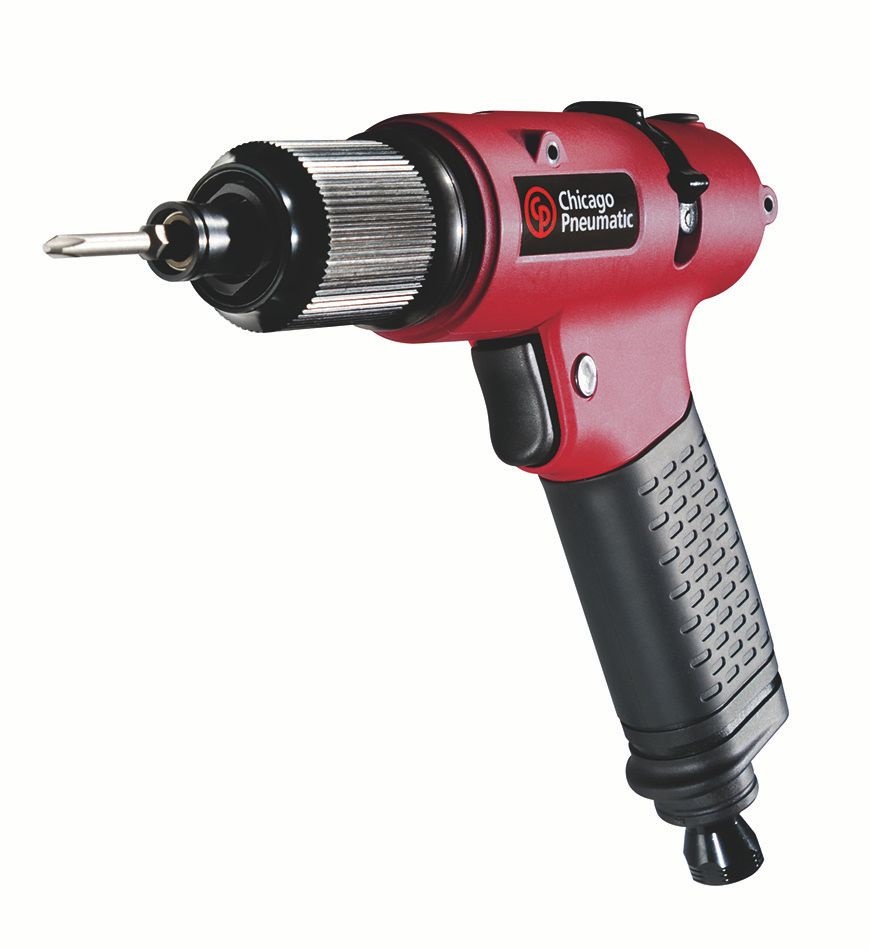

Pistol Cushion clutch screwdriver
Progressive trigger & reverse on top
3 air inlets for versatile access
Keyless Torque setting adjustment
Color rings for identification
| Metric | Imperial | |
|---|---|---|
| Model | CP2612 | |
| Part number | 6151922612 | |
| Air inlet thread size | 1/4 " | |
| Bit holder | Quick Change Hexagonal Female | |
| Clutch type | Cushion | |
| Diameter | 23 mm | 0.89 " |
| Free speed | 1700 rpm | |
| Free speed air consumption | 10 l/s | 21.189 cfm |
| Handle type | Pistol | |
| Height | 175 mm | 6.9 " |
| Length | 190 mm | 7.5 " |
| Max working torque | 6 Nm | 4.42 ft.lbs |
| Min working torque | 1 Nm | 0.737 ft.lbs |
| Min. hose size | 10 mm | 3/8 " |
| Net weight | 0.9 kg | 1.99 lb |
| Output drive | 1/4 " | |
| Screw type hard | yes | |
| Screw type soft | yes | |
| Sound Power | 88 db(A) | |
| Sound pressure | 77 db(A) | |
| Vibration | <2.5 m/s² | |
| Vibration ISO | ISO-28927-2 | |
| Vibration uncertainty (K) | - m/s² |
