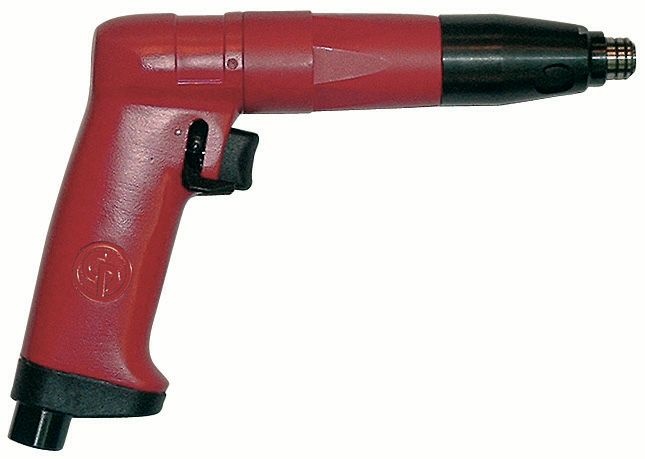

Automatic Shut-off clutch
screwdriver
Compact pistol
shape
Robust aluminum body
Progressive trigger
1-hand reverse button
Narrow side-to-center
| Metric | Imperial | |
|---|---|---|
| Model | CP2005 | |
| Part number | 6151922005 | |
| Air inlet thread size | 1/8 BSP " | |
| Bit holder | Quick Change Hexagonal Female | |
| Clutch type | Shut off | |
| Diameter | 17 mm | 0.67 " |
| Free speed | 1100 rpm | |
| Free speed air consumption | 6.5 l/s | 13.8 cfm |
| Handle type | Pistol | |
| Height | 143 mm | 5.6 " |
| Length | 182 mm | 7.2 " |
| Max working torque | 4.3 Nm | 3.17 ft.lbs |
| Min working torque | 0.4 Nm | 0.295 ft.lbs |
| Min. hose size | 10 mm | 3/8 " |
| Net weight | 0.8 kg | 1.8 lb |
| Output drive | 1/4 " | |
| Screw type hard | yes | |
| Screw type soft | yes | |
| Screw type very soft | yes | |
| Sound Power | 87 db(A) | |
| Sound pressure | 76 db(A) | |
| Vibration | <2.5 m/s² | |
| Vibration ISO | ISO-28927-2 | |
| Vibration uncertainty (K) | - m/s² |
