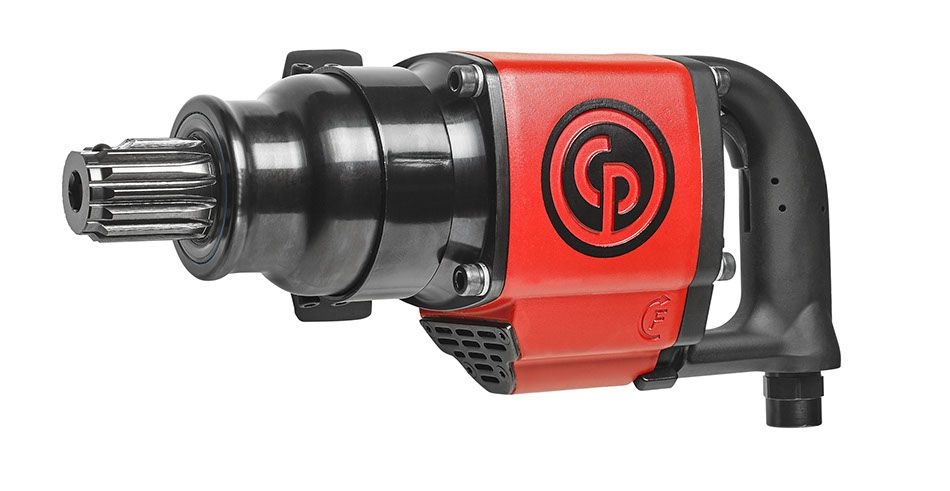

Super Industrial impact with spline #5
Reliable 2-jaw clutch with the highest Blows per Minutes
Full Teasing (inside) trigger with durable reverse
Durable aluminum body & indestructible steel clutch housing
Compact 3-part construction & easy maintenance
Hole type socket retainer with O-ring
360° adjustable D-type side handle
Steel internal trigger
| Metric | Imperial | |
|---|---|---|
| Model | CP0611-D28L | |
| Part number | 6151590170 | |
| Actual air consumption | 32 l/s | 68 cfm |
| Air inlet thread size | 1/2 " | |
| Blows per minute | 1020 | |
| Box dimensions | 505x240x145 mm | |
| Clutch type | 2-jaw clutch | |
| European Standards | EN ISO 11148-6:2013 | |
| Free speed | 3500 rpm | |
| Free speed air consumption | 55 l/s | |
| Handle type | D-Handle | |
| Length | 360 mm | |
| Maximum Torque (reverse) | 3790 Nm | 2800 ft.lbs |
| Min. hose size | 1 " | |
| Net weight | 10.4 kg | 22.9 lb |
| Side to center | 46 mm | 1.81 " |
| Socket retainer | Hole | |
| Sound Power | 110 db(A) | |
| Sound pressure | 99 db(A) | |
| Square drive | #5 spline " | |
| Vibration | 18 m/s² | |
| Vibration ISO | ISO-28927-2 | |
| Vibration uncertainty (K) | 4.1 m/s² | |
| Working Torque Range (fwd) | 1,220 - 2,440 Nm | 900 - 1,800 ft.lbs |
