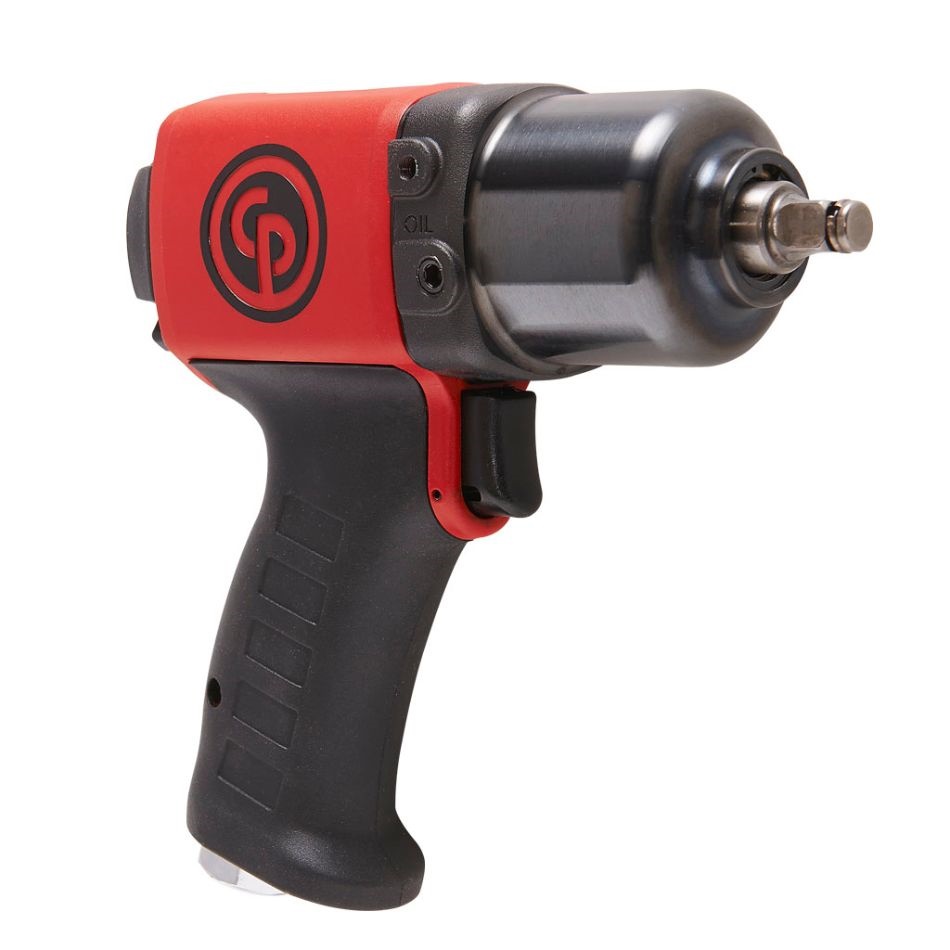

3/8" Industrial Impact wrench
Twin hammer in oil bath and steel clutch housing for long life
Extremely durable steel motor
Robust steel clutch housing
Ergonomic reverse and power setting
| Metric | Imperial | |
|---|---|---|
| Model | CP6728-P05R | |
| Part number | 6151590550 | |
| Actual air consumption | 11.4 l/s | 24.2 cfm |
| Air inlet thread size | 1/4 " | |
| Average air consumption | 4 l/s | 8.5 cfm |
| Box dimensions | 206*200*69 mm | 8,1*7,9*2*7 " |
| Clutch type | Twin hammer | |
| European Standards | EN ISO 11148-6:2013 | |
| Free speed | 11500 rpm | |
| Free speed air consumption | 16.3 l/s | |
| Handle type | Pistol | |
| Length | 175 mm | 6.9 " |
| Maximum Torque (reverse) | 475 Nm | 350 ft.lbs |
| Min. hose size | 10 mm | 3/8 " |
| Net weight | 1.7 kg | 3.7 lb |
| Side to center | 31 mm | 1.2 " |
| Socket retainer | Friction ring | |
| Sound Power | 100 db(A) | |
| Sound pressure | 89 db(A) | |
| Square drive | 3/8 " | |
| Vibration | 5.2 m/s² | |
| Vibration ISO | ISO-28927-2 | |
| Vibration uncertainty (K) | 1.9 m/s² | |
| Working Torque Range (fwd) | 110 - 350 Nm | 80 - 260 ft.lbs |
