| Part number |
5412053652 |
| Model |
FW-66SA-1 BF |
| Handle type |
Straight |
| Square drive |
3/8" |
9,5 mm |
| Square drive |
9,5 mm |
3/8 |
| Working Torque Range (fwd) |
12 - 25 Nm |
8.9 - 18 |
| Maximum Torque (fwd) |
35 Nm |
26 ft.lbs |
| Free speed |
5000 rpm |
| Net weight |
0.78 kg |
1.72 lb |
| Length |
212 mm |
8.35" |
| Actual air consumption |
6.1 l/s |
13.1 cfm |
| Min. hose size |
6.3 mm |
1/4" |
| Sound pressure |
83 db(A) |
| Sound Power |
94 db(A) |
| Vibration α (ISO-28927-2) |
7.6 m/s² |
| Vibration K (ISO-28927-2) |
2.3 m/s² |
| Socket retainer |
Pin (BF-Anvil) |
| Clutch type |
Double hammers |
| Bolt size |
M6 |
1/4 |

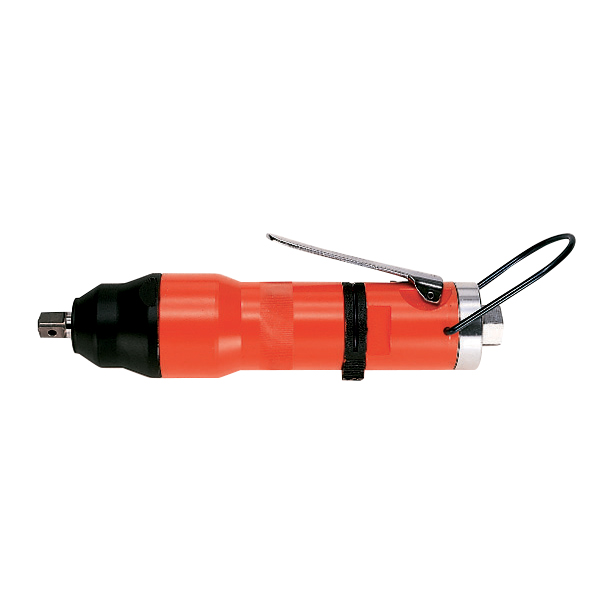

FW-66SA-1 BF - Dual chamber motor, flat button retainer
