Part number |
5412053544 |
Model |

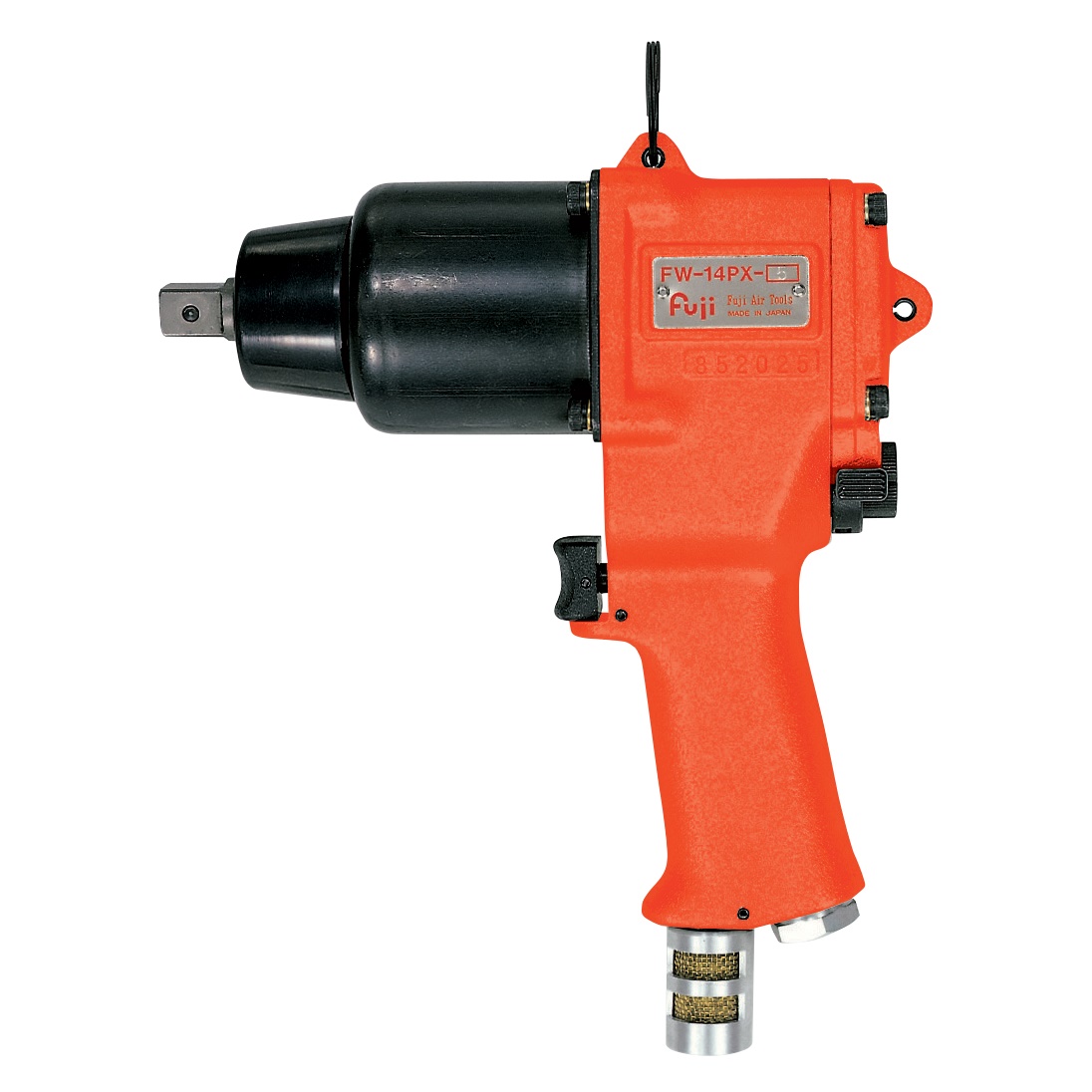

FW-14PX-5 BF |
Handle type |
Pistol |
Square drive |
1/2" |
12,7 mm |
Square drive |
12,7 mm |
1/2 |
Working Torque Range (fwd) |
80 - 130 Nm |
59 - 96 |
Maximum Torque (fwd) |
150 Nm |
111 ft.lbs |
Free speed |
6500 rpm |
Net weight |
3 kg |
6.61 lb |
Length |
197 mm |
7.76" |
Actual air consumption |
6.6 l/s |
14.1 cfm |
Min. hose size |
9.5 mm |
3/8" |
Sound pressure |
90 db(A) |
Sound Power |
101 db(A) |
Vibration α (ISO-28927-2) |
3.1 m/s² |
Vibration K (ISO-28927-2) |
1 m/s² |
Socket retainer |
Pin (BF-Anvil) |
Clutch type |
Single Hammer |
Bolt size |
M14 |
9/16 |
