| Model |
FLT-4S-3 BF CD |
| Handle type |
Straight |
| Square drive |
Sq 3/8" |
Sq 9.5 |
| Square drive |
Sq 9.5 mm |
Sq 3/8 |
| Working Torque Range (fwd) |
5.5 - 11 Nm |
4.1 - 8.1 |
| Free speed |
4300 rpm |
| Net weight |
0.88 kg |
1.94 lb |
| Length |
222 mm |
8.74" |
| Side to center |
22 mm |
0.87" |
| Actual air consumption |
5.5 l/s |
11.7 cfm |
| Min. hose size |
6.3 mm |
1/4" |
| Sound pressure |
76.7 db(A) |
| Sound Power |
87.7 db(A) |
| Vibration α (ISO-28927-2) |
3.7 m/s² |
| Vibration K (ISO-28927-2) |
2.3 m/s² |
| Socket retainer |
Pin (BF-Anvil) |
| Pulse type |
2-blade |
| Bolt size |
M5 - M6 |
No.10 -1/4 |

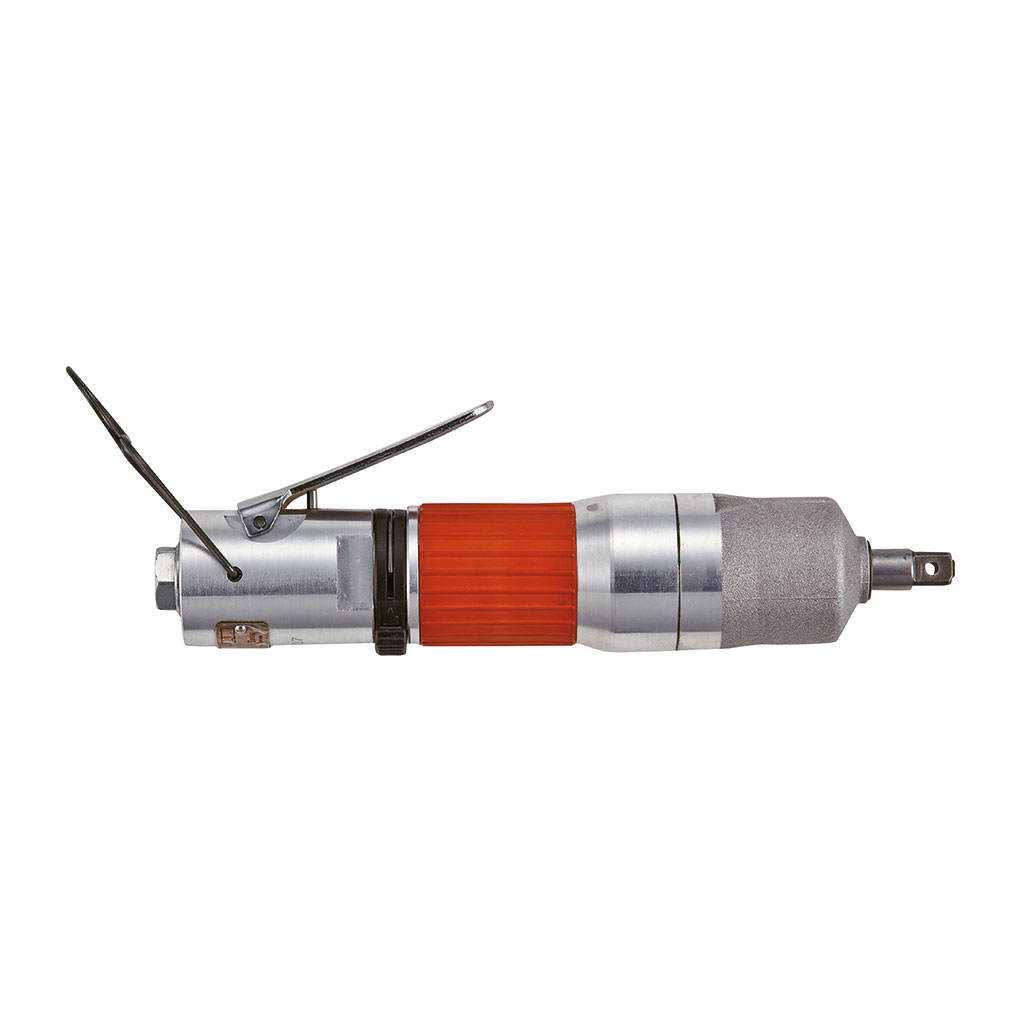

FLT-4S-3 BF CD - Compact, accurate & long life, for count down
