FLT-4S-3 P

FLT-4S-3 P

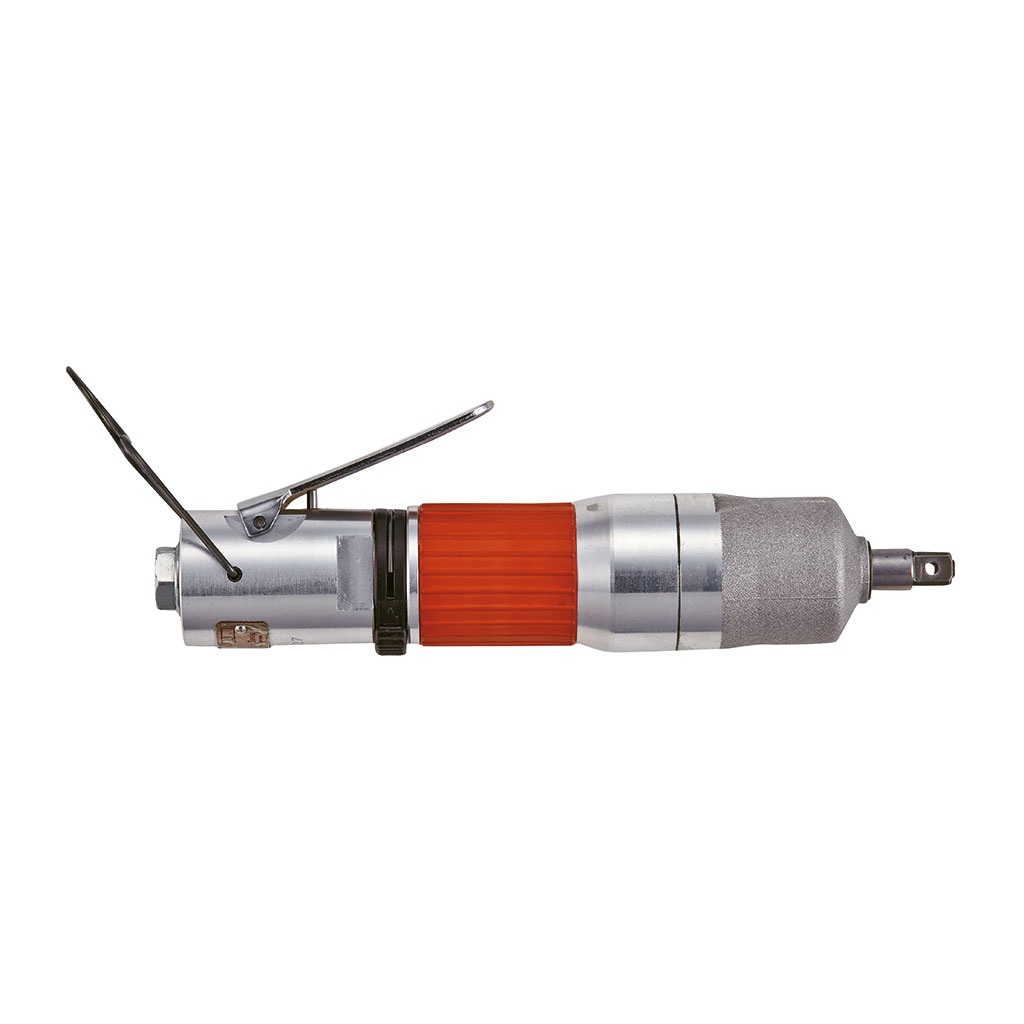

FLT-4S-3 P - Compact, accurate & long life

Part number 5412105450
Model FLT-4S-3 P
Handle type Straight
Square drive Sq 3/8" Sq 9.5
Square drive Sq 9.5 mm Sq 3/8
Working Torque Range (fwd) 5.5 - 11 Nm 4.1 - 8.1
Free speed 4300 rpm
Net weight 0.88 kg 1.94 lb
Length 222 mm 8.74"
Side to center 22 mm 0.87"
Actual air consumption 5.5 l/s 11.7 cfm
Min. hose size 6.3 mm 1/4"
Sound pressure 76.7 db(A)
Sound Power 87.7 db(A)
Vibration α (ISO-28927-2) 3.7 m/s²
Vibration K (ISO-28927-2) 2.3 m/s²
Socket retainer Hole (P-Anvil)
Pulse type 2-blade
Bolt size M5 - M6  No.10 -1/4
