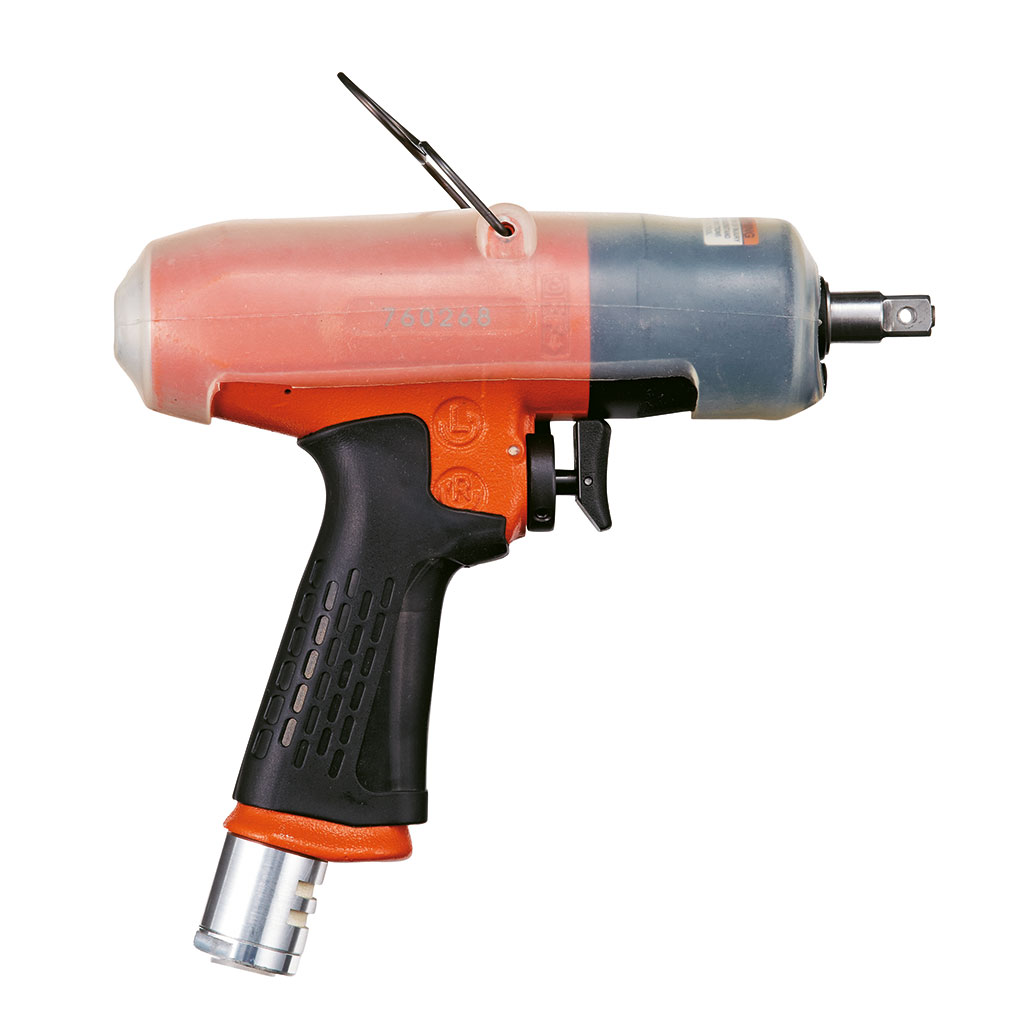

FLT-4-3L P CD - Compact, accurate & long life,
for low air pressure, for count down
Part number |
5412105578 |
Model |
FLT-4-3L P CD |
Handle type |
Pistol |
Square drive |
Sq 3/8" |
Sq 9.5 |
Square drive |
Sq 9.5 mm |
Sq 3/8 |
Working Torque Range (fwd) |
4.5 - 8 Nm |
3.3 - 5.9 |
Free speed |
5300 rpm |
Net weight |
0.97 kg |
2.14 lb |
Length |
181 mm |
7.13" |
Side to center |
22 mm |
0.87" |
Actual air consumption |
5 l/s |
10.6 cfm |
Min. hose size |
6.3 mm |
1/4" |
Sound pressure |
70.8 db(A) |
Sound Power |
81.8 db(A) |
Vibration α (ISO-28927-2) |
< 2.5 m/s² |
Vibration K (ISO-28927-2) |
0.3 m/s² |
Socket retainer |
Hole (P-Anvil) |
Pulse type |
2-blade |
Bolt size |
M5 - M6 |
No.10 -1/4 |
