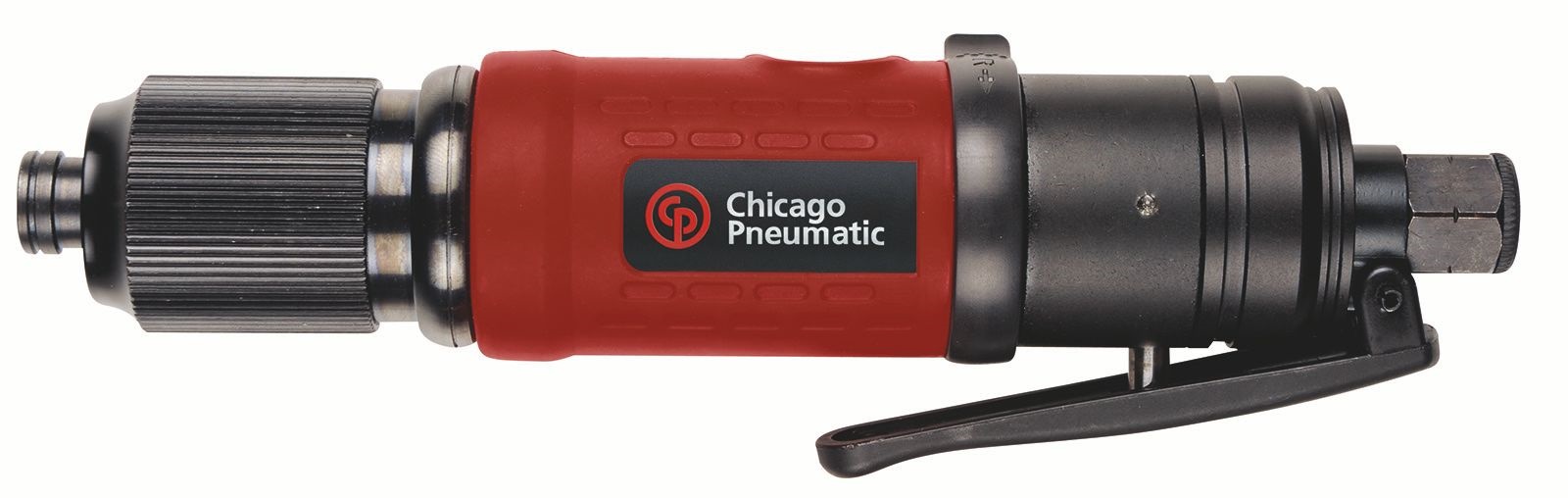

Straight Cushion clutch screwdriver with lever
Single handedd reverse button
Keyless Torque setting adjustment
Color rings for identification
| Metric | Imperial | |
|---|---|---|
| Model | CP2623 | |
| Part number | 6151922623 | |
| Air inlet thread size | 1/4 " | |
| Bit holder | Quick Change Hexagonal Female | |
| Clutch type | Cushion | |
| Diameter | 42 mm | 1.65 " |
| Free speed | 1700 rpm | |
| Free speed air consumption | 13.1 l/s | 27.7 cfm |
| Handle type | Straight | |
| Length | 207 mm | 8.2 " |
| Max working torque | 5 1/2 Nm | 4.056 ft.lbs |
| Min working torque | 1 1/2 Nm | 1.106 ft.lbs |
| Min. hose size | 10 mm | 3/8 " |
| Net weight | 0.8 kg | 1.76 lb |
| Output drive | 1/4 " | |
| Screw type hard | yes | |
| Screw type soft | yes | |
| Sound Power | 89 db(A) | |
| Sound pressure | 78 db(A) | |
| Vibration | <2.5 m/s² | |
| Vibration ISO | ISO-28927-2 | |
| Vibration uncertainty (K) | - m/s² |
