Aluminum body with composite housing to insulate from cold
Fast rundown 280 RPM
Short & Wide lever
Back exhaust avoids blowing dirt and dust
New power easy-to-use regulator to regulate speed from zero to max speed
Flat forward and reverse button
Improved head material
Head composite protective cover supplied with the tool
Shank with ball retainer
1.1 lbs. – 0.5 kg
| Metric | Imperial | |
|---|---|---|

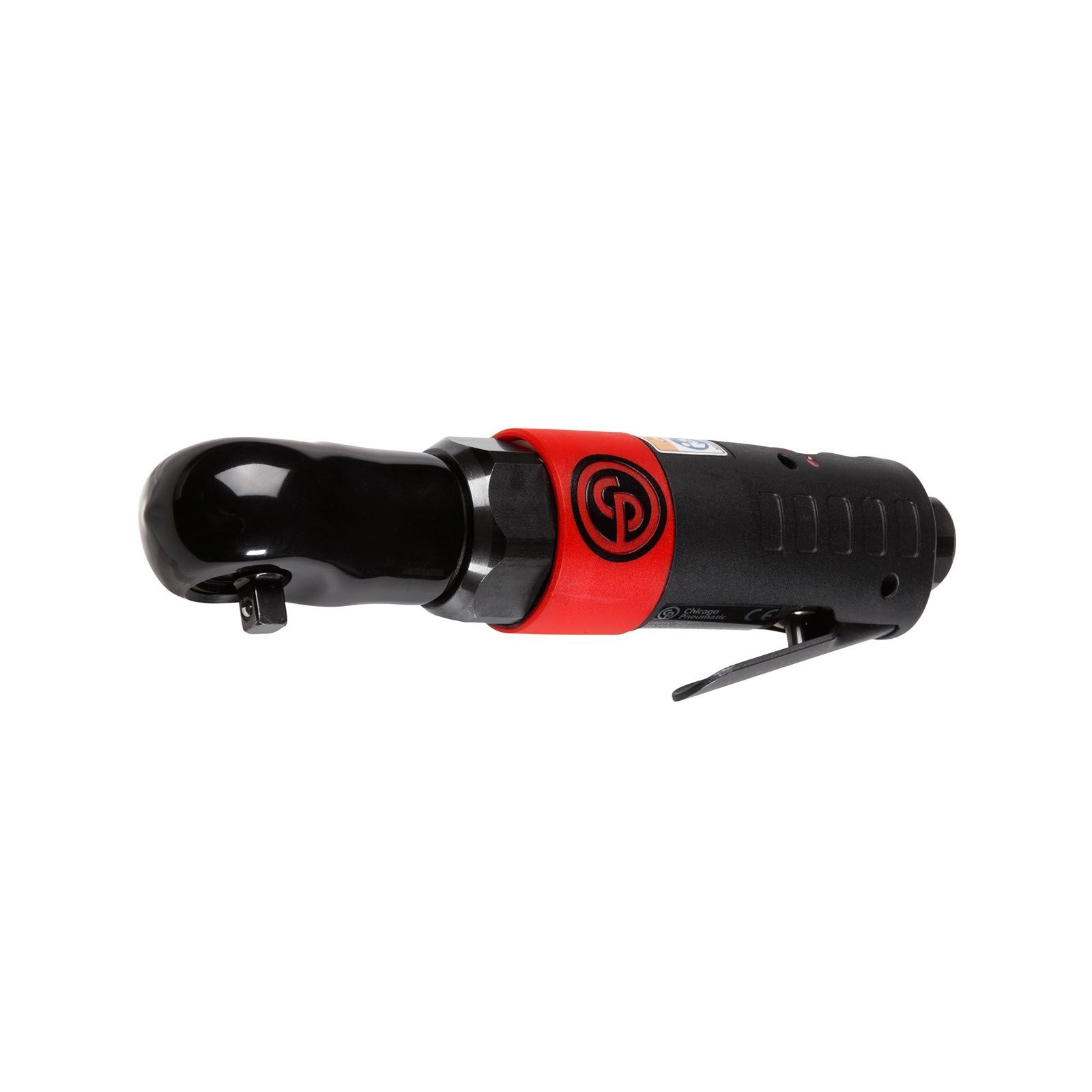

| Model | CP825CT | |
| Part number | 8941082512 | |
| Actual air consumption | 438 l/mn | 15.5 cfm |
| Air inlet thread size | 1/4 " | |
| Average air consumption | 88 l/mn | 3.2 cfm |
| Box dimensions | 50x110x190 mm | 1.97x4.33x7.48 " |
| European Directives | 2006/42/EC (17/05/2006) | |
| European Sound standard | ISO-15744 | |
| European Standards | EN ISO 11148-6:2012 | |
| Free speed | 280 rpm | |
| Height | 37 mm | 1.4 " |
| Length | 169 mm | 6.6 " |
| Max torque | 35 Nm | 26 ft.lbs |
| Min. hose size | 10 mm | 3/8 " |
| Net weight | 1/2 kg | 1.1 lb |
| Over carton | 280x230x400 mm | 11x9.05x15.75 " |
| Side to center | 19 mm | 3/4 " |
| Sound DBA pressure | 82 db(A) | |
| Sound Power | 93 db(A) | |
| Sound pressure | 82 db(A) | |
| Sound uncertainty | 3 db(A) | |
| Square drive | 3/8 " | |
| Vibration | 4 m/s² | |
| Vibration ISO | ISO-28927-2 | |
| Vibration uncertainty (K) | 1 1/2 m/s² | |
| Width | 38 mm | 1 1/2 " |
| Working torque Range | 5 - 25 Nm | 4 - 18 ft.lbs |
