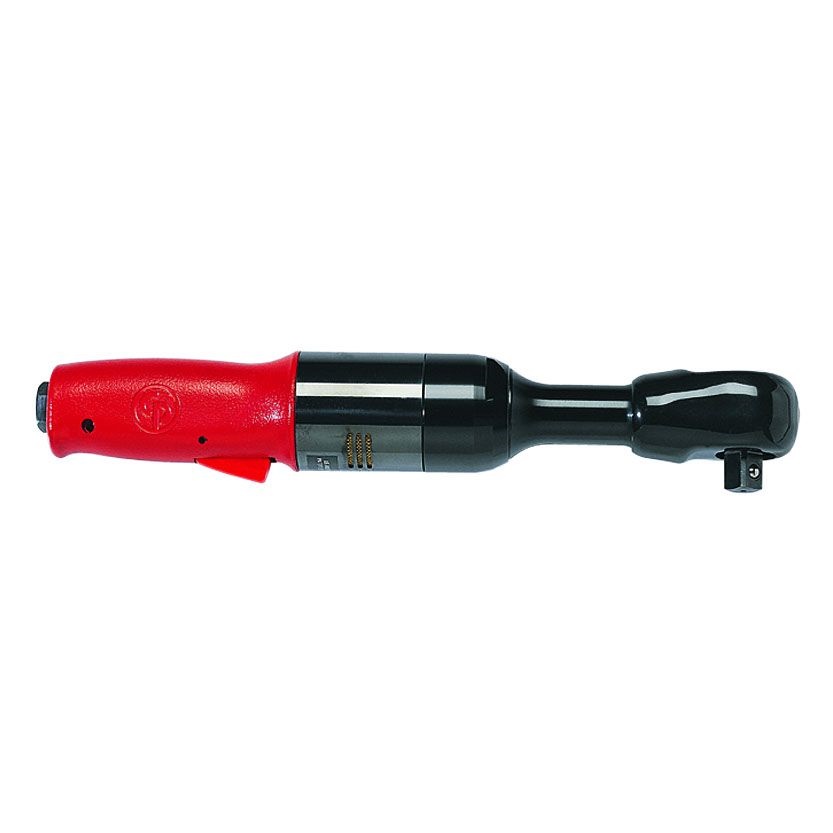

1/2" high power ratchet
Adjustable side exhaust, low noise
Progressive tease throttle
Highest torque on the market: 90 ft.lbs (122 Nm)
Grease fitting on the reverse button
Sturdy aluminum alloy head
Features CP's patented TriSpring anti-slip head design with protective head cover
| Metric | Imperial | |
|---|---|---|
| Model | CP7830HQ | |
| Part number | 8941078308 | |
| Actual air consumption | 524 l/mn | 21 cfm |
| Air inlet thread size | 1/4 " | |
| Average air consumption | 141 l/mn | 5 cfm |
| Free speed | 190 rpm | |
| Length | 305 mm | 12 " |
| Max torque | 122 Nm | 90 ft.lbs |
| Min. hose size | 10 mm | 3/8 " |
| Net weight | 1.2 kg | 2.7 lb |
| Sound DBA pressure | 96 db(A) | |
| Sound pressure | 85 db(A) | |
| Square drive | 1/2 " | |
| Vibration | 4.1 m/s² | |
| Vibration ISO | ISO-28927-2 | |
| Vibration uncertainty (K) | 1.4 m/s² | |
| Working torque Range | 13 - 122 Nm | 10 - 90 ft.lbs |
