Replaceable protective cover
Reliable Gearbox: 13,000 cycles before maintenance
Vane type high performance air motor same as industrial impact wrench
Capable of reaching high torque accuracy
Different reaction arm types and shapes available
Reduce operator fatigue and risks of MSDs
| Metric | Imperial | |
|---|---|---|

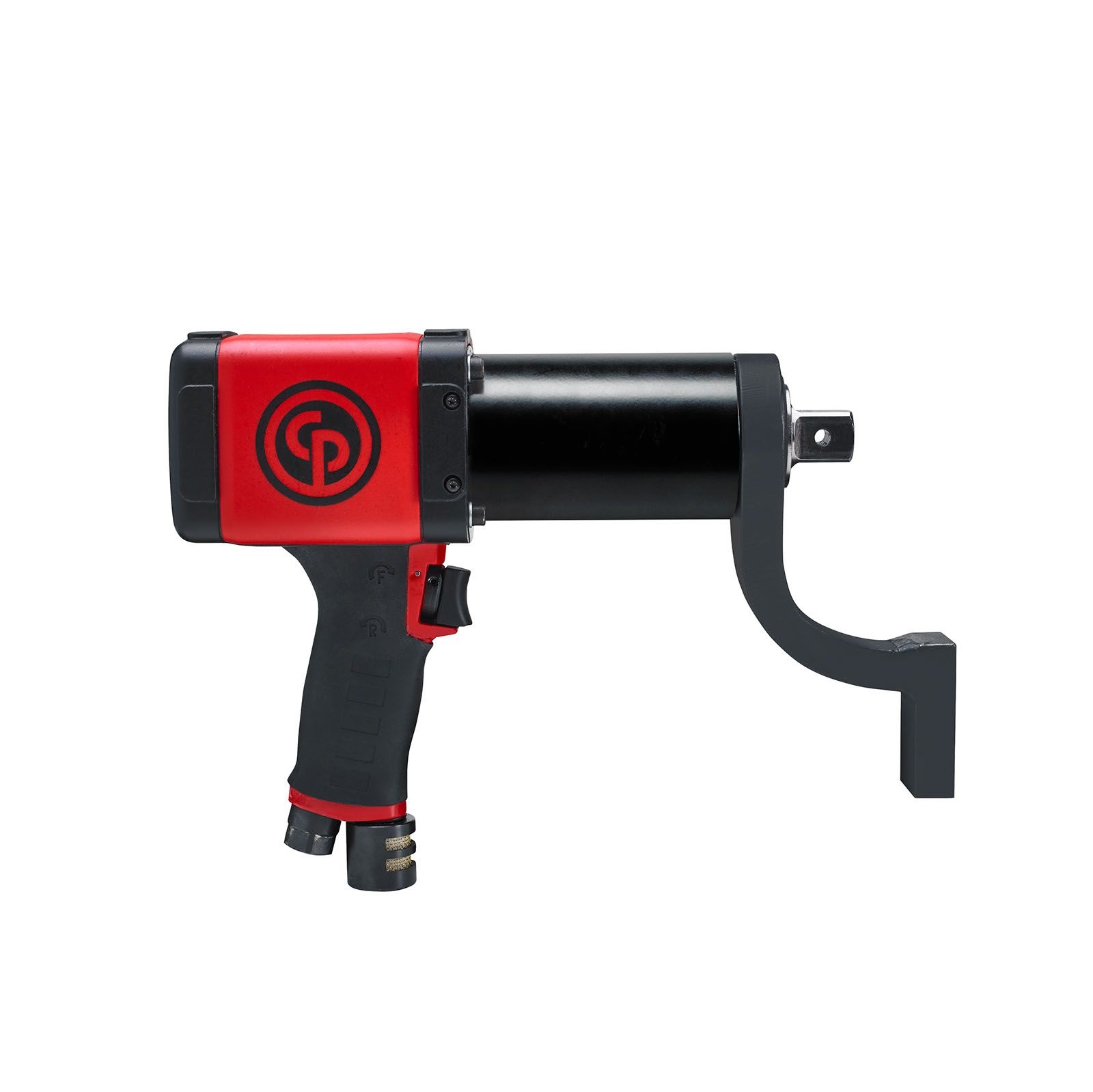

| Model | CP6613 + ATC PACK | |
| Part number | 6151800120 | |
| Air inlet thread size | 3/8 " | |
| Bolt size | 20-27 mm | 3/4 - 1-1/16 " |
| European Directives | 2006/42/EC (17/05/2006) | |
| European Sound standard | ISO 15744 | |
| European Standards | EN ISO 11148-6:2013 | |
| Free speed | 20 rpm | |
| Free speed air consumption | 23 l/s | 48 cfm |
| Handle type | Pistol | |
| Height | 212 mm | 8.34 " |
| Length | 254 mm | 10 " |
| Maximum Torque (fwd) | 1300 Nm | 960 ft.lbs |
| Maximum Torque (reverse) | 1300 Nm | 960 ft.lbs |
| Min. hose size | 13 mm | 1/2 " |
| Reaction bar | S-type | |
| Reversible | Reversible | |
| Side to center | 32 mm | 1.26 " |
| Socket retainer | Hole | |
| Sound Power | 101 db(A) | |
| Sound pressure | 90 db(A) | |
| Sound uncertainty | 3 db(A) | |
| Square drive | 19 mm | |
| Torque preset # | Multi | |
| Vibration | <2,5 m/s² | |
| Vibration ISO | ISO 28927-2 | |
| Weight Including Reaction Arm | 4.4 kg | 10.1 lb |
| Weight w/o Reaction Arm | 3.7 kg | 8.3 lb |
| Width | 72 mm | 2.83 " |
| Working Torque Range (fwd) | 320 - 1300 Nm | 236 - 960 ft.lbs |
| Working Torque Range (reverse) | 320 - 1300 Nm | 236 - 960 ft.lbs |
