Air Shut-off clutch at preset torque
Integrated reaction bar standard with blade
Low noise level: 79 dB(A)
Almost no vibration : <2,5 m/s²
Short version with CUPS reaction bar in option
| Metric | Imperial | |
|---|---|---|

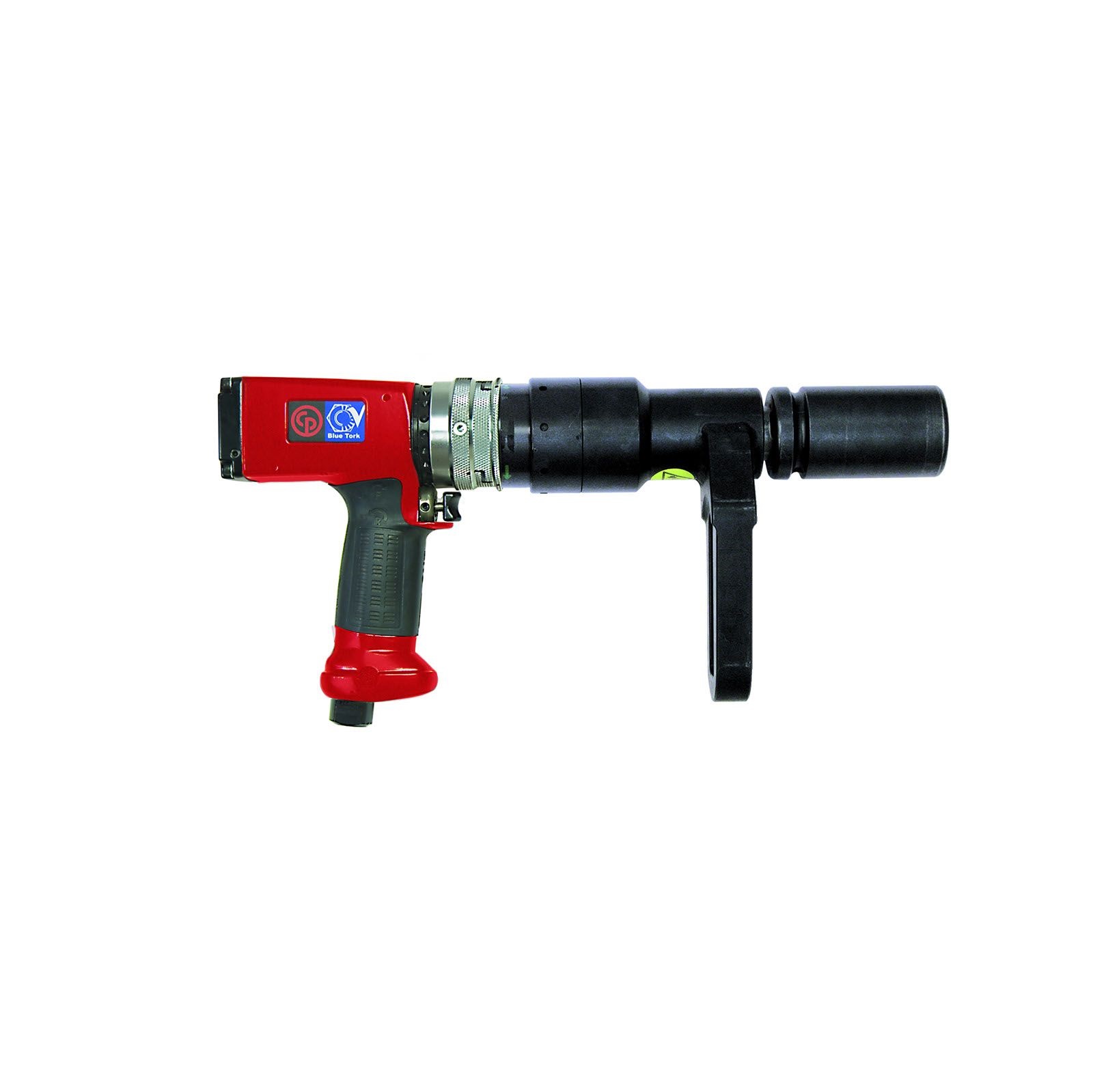

| Model | CP7600C-R | |
| Part number | 8941076031 | |
| Air inlet thread size | 40 " | |
| European Directives | 2006/42/EC | |
| European Standards | EN ISO 11148-6:2012 | |
| Free speed | 100 rpm | |
| Free speed air consumption | 19 l/s | 40 cfm |
| Handle type | Pistol | |
| Length | 345 mm | 13.6 " |
| Maximum Torque (fwd) | 900 Nm | 660 ft.lbs |
| Maximum Torque (reverse) | 900 Nm | 660 ft.lbs |
| Net weight | 7.4 kg | 16.3 lb |
| Reaction bar | C reaction bar | |
| Reversible | Reversible | |
| Socket retainer | Hole | |
| Sound Power | 90 db(A) | |
| Sound pressure | 79 db(A) | |
| Square drive | 1 " | |
| Torque preset # | 1 | |
| Vibration ISO | ISO-28927-2 | |
| Working Torque Range (fwd) | 450 - 900 Nm | 330 - 660 ft.lbs |
| Working Torque Range (reverse) | 450 - 900 Nm | 330 - 660 ft.lbs |
