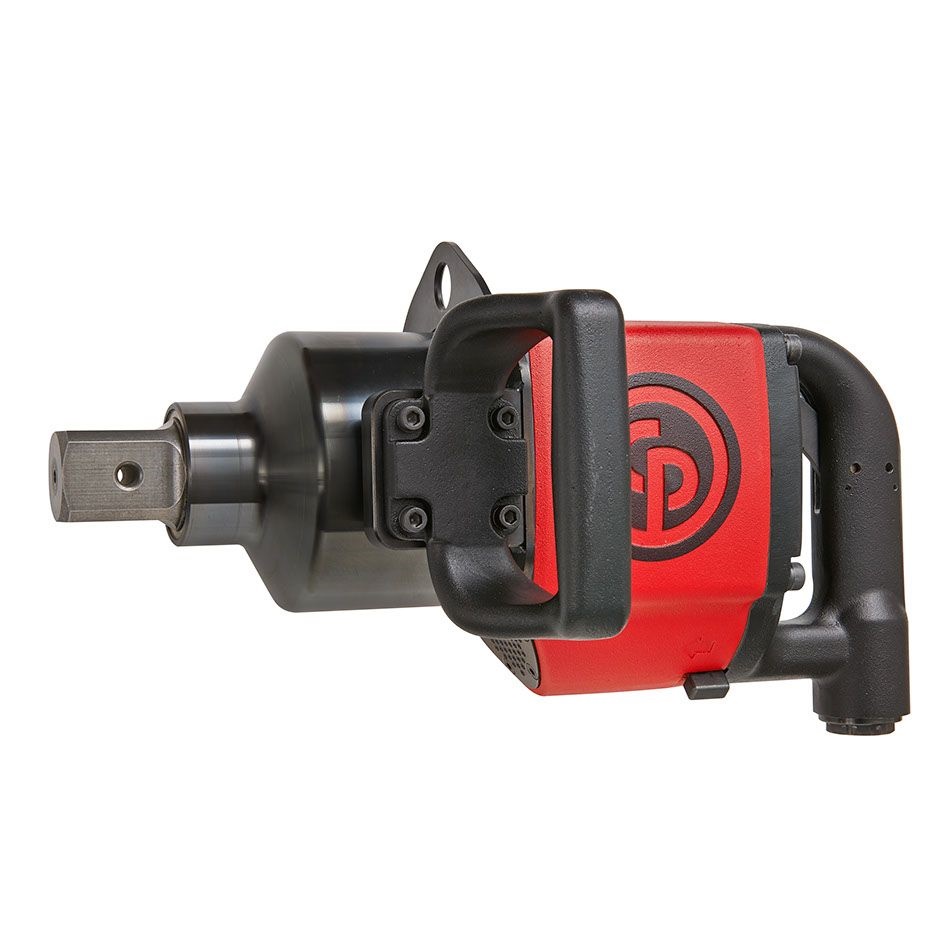

Durable Pinless Rocking Dog clutch
Robust aluminum body & Steel clutch housing
Reversible and teasing steel trigger
| Metric | Imperial | |
|---|---|---|
| Model | CP6135-D80 | |
| Part number | 6151590380 | |
| Actual air consumption | 40 l/s | 84.5 cfm |
| Air inlet thread size | 1/2 " | |
| Blows per minute | 750 | |
| Bolt size | M48 mm | 1-7/8" " |
| Box dimensions | 220 x 460 x 280 mm | 8,7 x 18,1 x 11,0 " |
| Clutch type | Pinless Rocking Dog | |
| European Standards | EN ISO 11148-6:2013 | |
| Free speed | 2800 rpm | |
| Handle type | D-Handle Inside Trigger | |
| Length | 408 mm | 16 " |
| Maximum Torque (reverse) | 8000 Nm | 5900 ft.lbs |
| Min. hose size | 19 mm | 5/8 " |
| Net weight | 16 kg | 35,3 lb |
| Power/weight ratio | 500 Nm/kg | 167.1 ft.lb/lb |
| Side to center | 67.5 mm | 2.65 " |
| Socket retainer | Hole | |
| Sound Power | 109 db(A) | |
| Sound pressure | 98 db(A) | |
| Square drive | 1 1/2 " | |
| Vibration | 13.6 m/s² | |
| Vibration ISO | ISO-28927-2 | |
| Vibration uncertainty (K) | 2.2 m/s² | |
| Working Torque Range (fwd) | 1,000 - 5,500 Nm | 740 - 4,055 ft.lbs |
