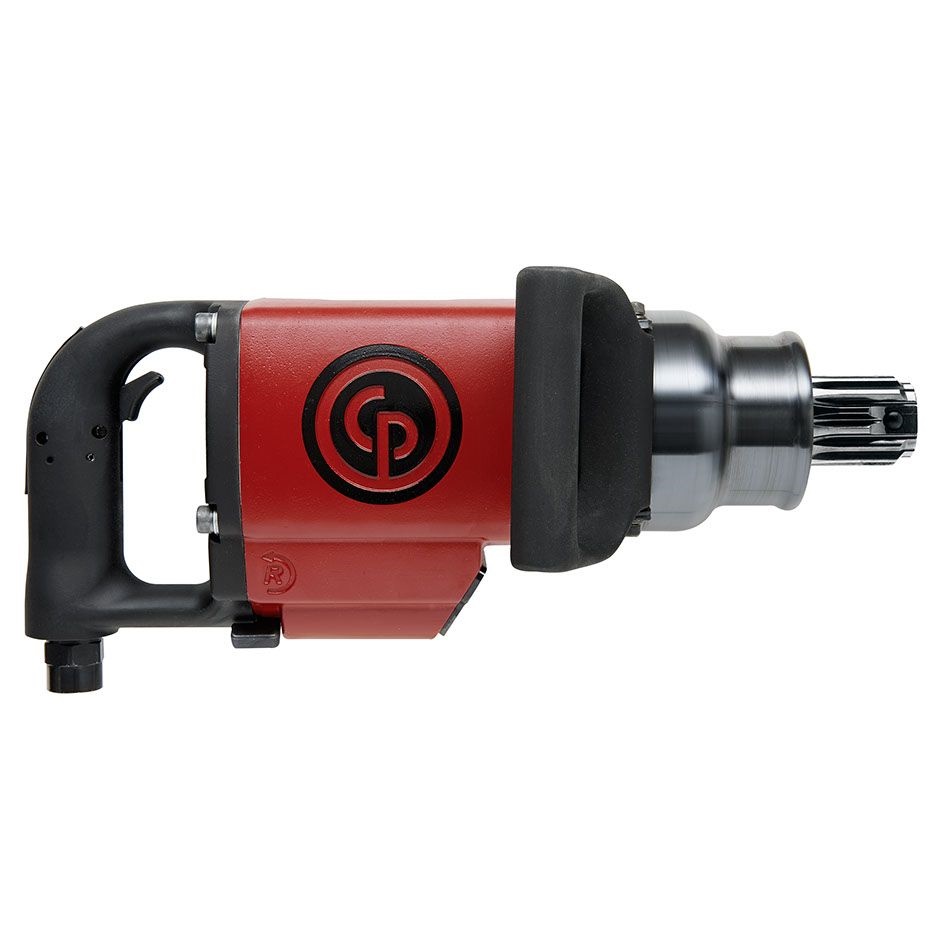

Premium Industrial spline #5 impact wrench
CP:s 2-Jaw clutch for superior ergonomics and productivity
Very robust steel clutch housing and aluminum motor housing
Extremely comfortable handle and adjustable support handle
Possibility to change inside/outside trigger, parts included in the box
Reverse biased 15%, possiblity to change to forward biased by turning around the air motor cylinder
| Metric | Imperial | |
|---|---|---|
| Model | CP6120-D35L | |
| Part number | 6151590130 | |
| Actual air consumption | 28.3 l/s | 60 cfm |
| Air inlet thread size | 1/2 " | |
| Blows per minute | 960 | |
| Box dimensions | 505x240x145 mm | |
| Clutch type | 2-jaw clutch | |
| European Standards | EN ISO 11148-6:2013 | |
| Free speed | 3500 rpm | |
| Free speed air consumption | 51.5 l/s | |
| Handle type | D-Handle Inside Trigger | |
| Length | 420 mm | 16.5 " |
| Maximum Torque (reverse) | 4880 Nm | 3600 ft.lbs |
| Min. hose size | 19 mm | |
| Net weight | 15.65 kg | 34.5 lb |
| Side to center | 54 mm | 2.13 " |
| Socket retainer | #5 spline | |
| Sound Power | 108 db(A) | |
| Sound pressure | 97 db(A) | |
| Square drive | #5 spline " | |
| Vibration | 21.8 m/s² | |
| Vibration ISO | ISO-28927-2 | |
| Vibration uncertainty (K) | 11.8 m/s² | |
| Working Torque Range (fwd) | 815 - 2,710 Nm | 600 - 2,000 ft.lbs |
