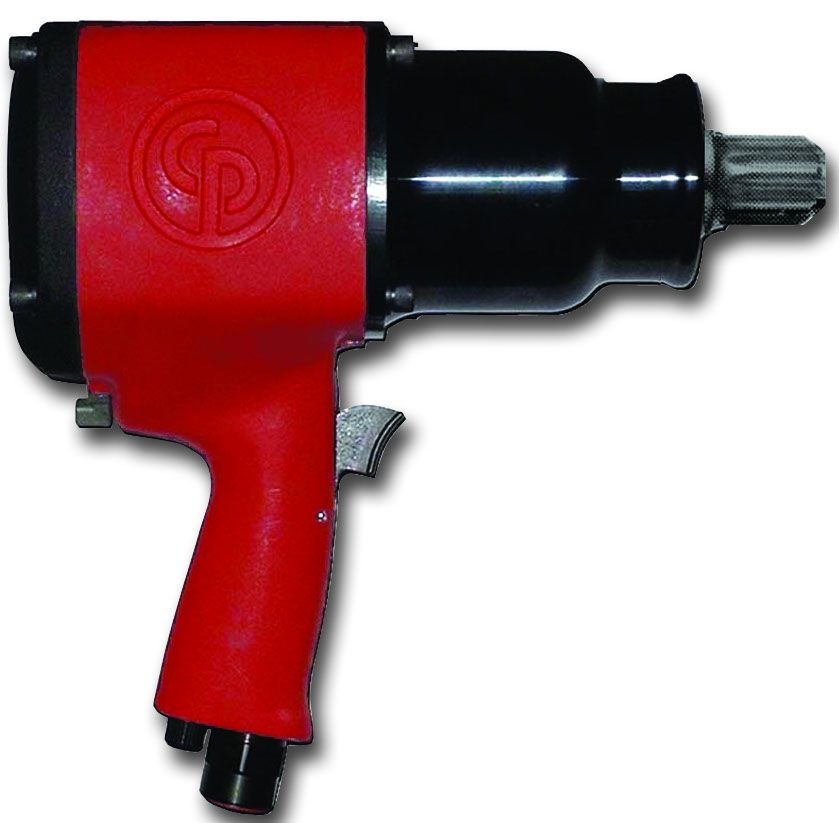

Super Industrial 1" impact wrench
Reliable 2-jaw clutch
Aluminum body & steel clutch housing
Protective & Durable reverse
Compact 3-part construction & easy maintenance
Hole type socket retainer with O-ring
360° adjustable D-type side handle
| Metric | Imperial | |
|---|---|---|
| Model | CP0611P RS | |
| Part number | 6151590050 | |
| Actual air consumption | 22.6 l/s | 48 cfm |
| Air inlet thread size | 1/2 " | |
| Blows per minute | 1020 | |
| Bolt size | M36 mm | |
| Clutch type | 2-jaw clutch | |
| European Standards | EN ISO 11148-6:2013 | |
| Free speed | 3500 rpm | |
| Handle type | Pistol | |
| Length | 272 mm | 10.7 " |
| Maximum Torque (reverse) | 3790 Nm | 2800 ft.lbs |
| Net weight | 10.5 kg | 23.1 lb |
| Power/weight ratio | 361 Nm/kg | 121.2 ft.lb/lb |
| Side to center | 46 mm | 1.81 " |
| Socket retainer | Hole | |
| Sound Power | 113 db(A) | |
| Sound pressure | 102 db(A) | |
| Square drive | 1 " | |
| Vibration | 16.8 m/s² | |
| Vibration ISO | ISO-28927-2 | |
| Vibration uncertainty (K) | 4.7 m/s² | |
| Working Torque Range (fwd) | 1,220 - 2,440 Nm | 900 - 1,800 ft.lbs |
