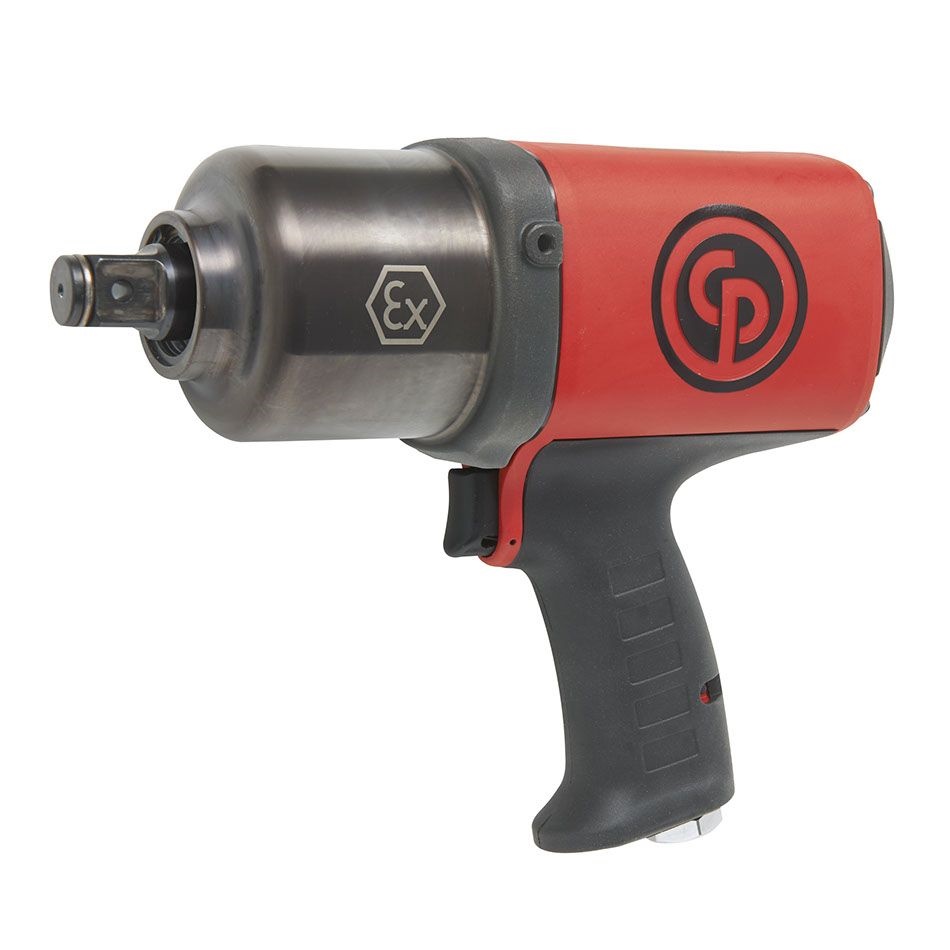

Twin hammer in oil bath and steel clutch housing for long life
Extremely durable steel motor
Dust-proof (IP6) and ATEX certified
| Metric | Imperial | |
|---|---|---|
| Model | CP6768EX-P18D | |
| Part number | 6151590580 | |
| Actual air consumption | 18 l/s | 38 cfm |
| Air inlet thread size | 3/8 " | |
| Blows per minute | 1050 | |
| Box dimensions | 100 x 260 x 280 mm | 4,0 x 10,2 x 11,0 " |
| Clutch type | Twin hammer / Oil Bath | |
| European Standards | EN ISO 11148-6:2013 | |
| Free speed | 5100 rpm | |
| Free speed air consumption | 26 l/s | 55 cfm |
| Handle type | Pistol | |
| Length | 250 mm | 10 " |
| Maximum Torque (reverse) | 1750 Nm | 1290 ft.lbs |
| Min. hose size | 13 mm | 1/2 " |
| Net weight | 4.4 kg | 9.8 lb |
| Power/weight ratio | 398 Nm/kg | 132 ft.lb/lb |
| Side to center | 45 mm | 1.77 " |
| Socket retainer | Dual (hole+friction) | |
| Sound Power | 105 db(A) | |
| Sound pressure | 94 db(A) | |
| Square drive | 3/4 " | |
| Vibration | 9.4 m/s² | |
| Vibration ISO | ISO-28927-2 | |
| Vibration uncertainty (K) | 2.4 m/s² | |
| Working Torque Range (fwd) | 400 - 1400 Nm | 290 - 1030 ft.lbs |
