| Part number |
5412052581 |
| Model |
FD-5P E |
| Handle type |
Pistol |
| Square drive |
1/4" Hex." |
Hex. 6.35 |
| Square drive |
Hex. 6.35 mm |
1/4" Hex. |
| Working Torque Range (fwd) |
6.0 - 10.0 Nm |
4.4 - 7.4 |
| Free speed |
1600 rpm |
| Net weight |
1.2 kg |
2.6 lb |
| Length |
216 mm |
8.5" |
| Side to center |
21 mm |
0.827" |
| Actual air consumption |
5 l/s |
10.6 cfm |
| Min. hose size |
6.3 mm |
1/4" |
| Sound pressure |
78 db(A) |
| Sound Power |
89 db(A) |
| Vibration α (ISO-28927-2) |
4 m/s² |
| Vibration K (ISO-28927-2) |
1.3 m/s² |
| Socket retainer |
Bit Shank (Hex) |
| Clutch type |
Slip Clutch |
| Bolt size |
M5 |
3/16 |

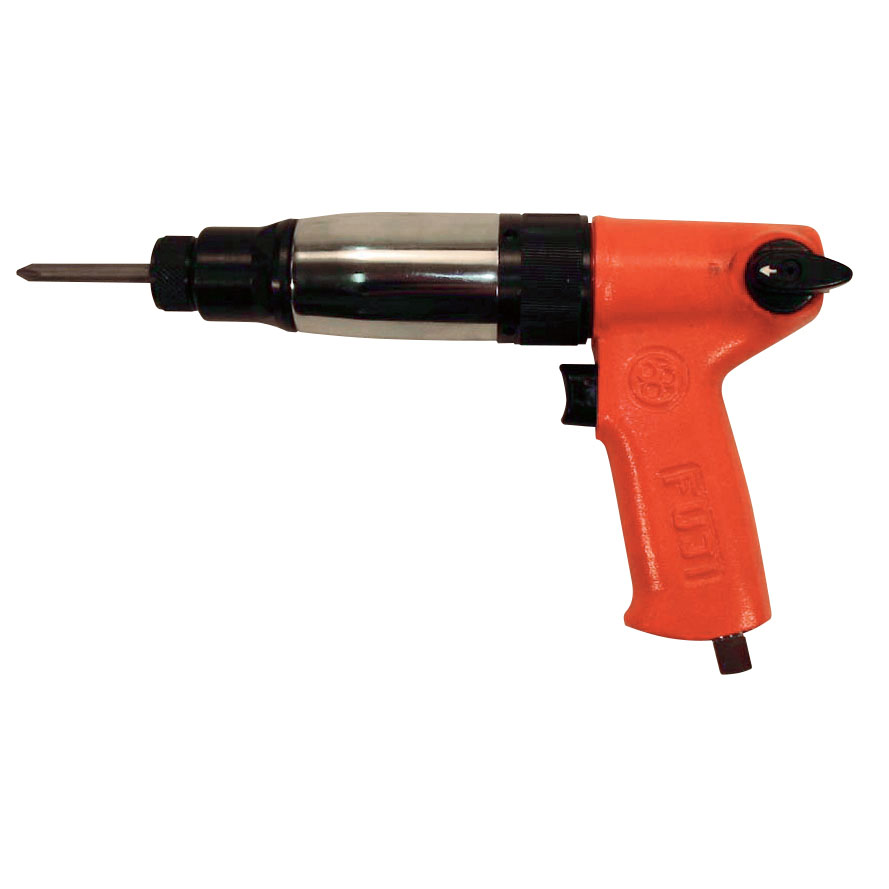

FD-5P E - Slip clutch, short bit
