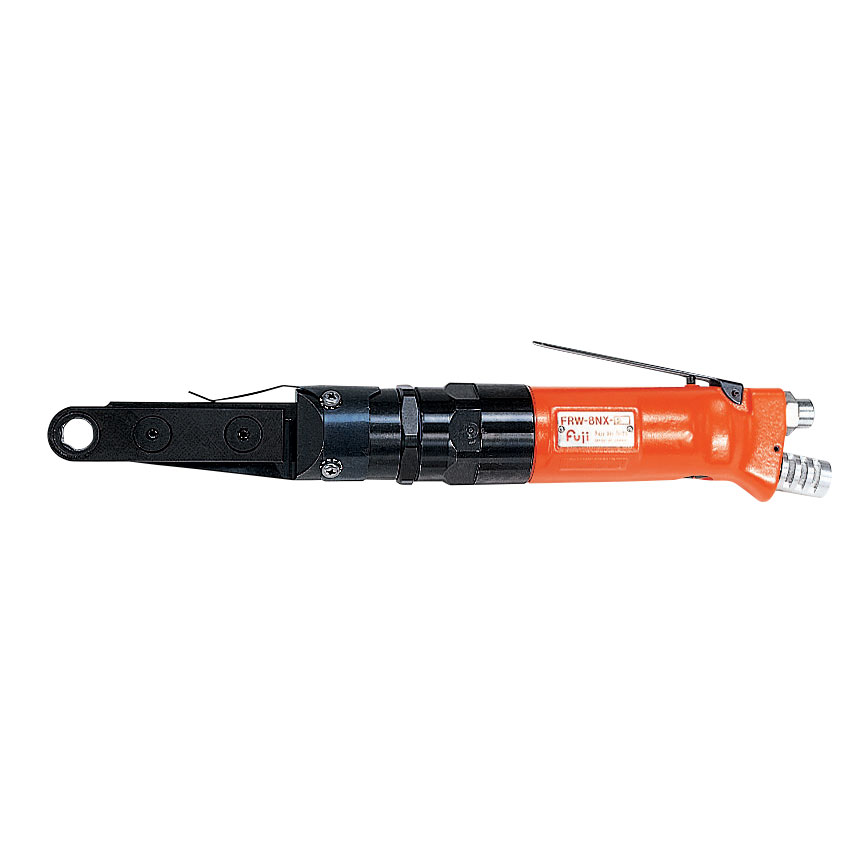

FRW-8NX-2 10 - Compact, 10mm double socket
Part number
5412053458
Model
FRW-8NX-2 10
Square drive
Hex 0.394"
Hex 10
Square drive
Hex 10 mm
Hex 0.394
Working torque Range
15 - 24 Nm
11.1 - 17.7
Max torque
29.4 Nm
22.1 ft.lbs
Free speed
200 rpm
Head thickness
18 mm
0.71"
Head width
25 mm
0.98"
Net weight
2.2 kg
4.9 lb
Length
378 mm
14.9"
Actual air consumption
7.2 l/s
15.2 cfm
Min. hose size
9.5 mm
3/8"
Sound pressure
90 db(A)
Sound Power
101 db(A)
Vibration α (ISO-28927-2)
< 2.5 m/s²
Vibration K (ISO-28927-2)
0.6 m/s²
Bolt size
M8
5/16
