FL-4-3 P

FL-4-3 P

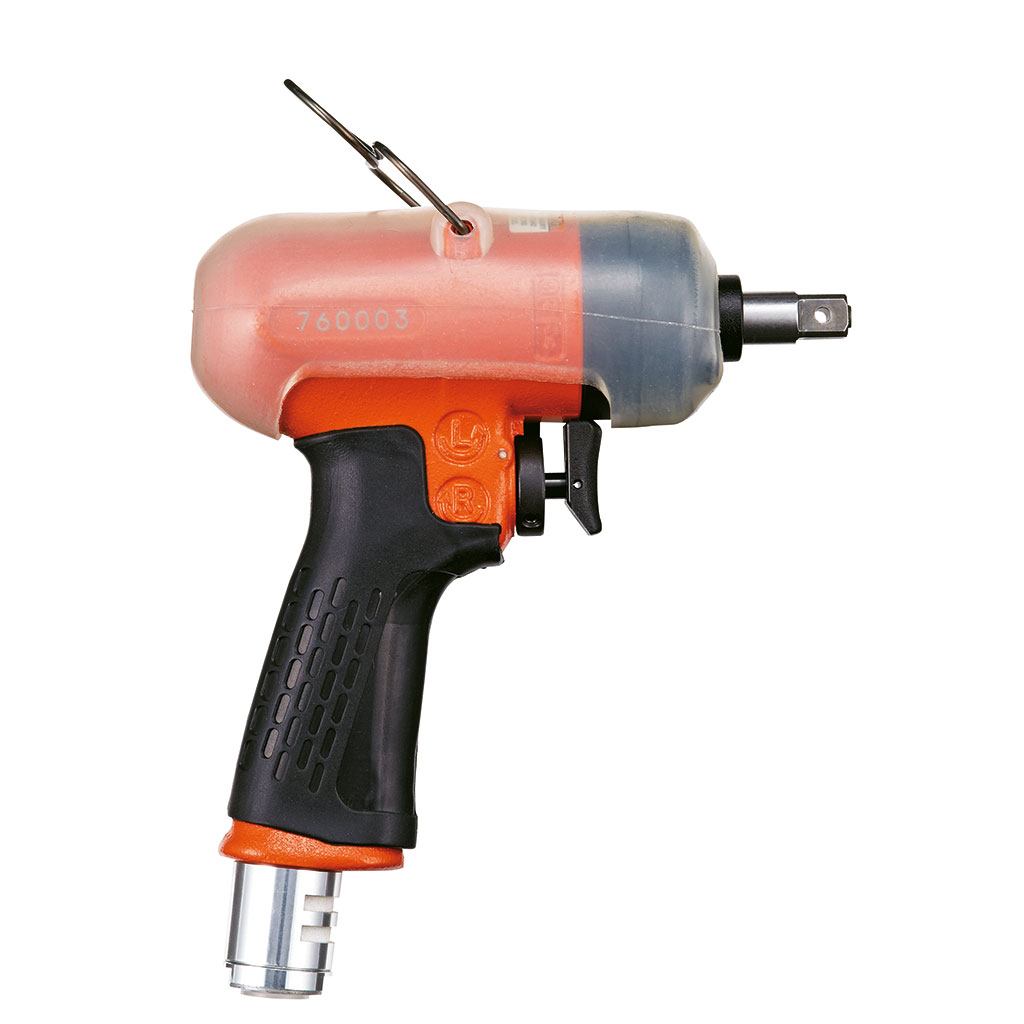

FL-4-3 P - Versatile, compact, long life

Part number 5412105348
Model FL-4-3 P
Handle type Pistol
Square drive Sq 3/8" Sq 9.5
Square drive Sq 9.5 mm Sq 3/8
Working Torque Range (fwd) 16 - 24 Nm 11.8 - 17.7
Free speed 6700 rpm
Net weight 0.79 kg 1.74 lb
Length 140 mm 5.51"
Side to center 22 mm 0.87"
Actual air consumption 6 l/s 12.7 cfm
Min. hose size 6.3 mm 1/4"
Sound pressure 76 db(A)
Sound Power 87 db(A)
Vibration α (ISO-28927-2) < 2.5 m/s²
Vibration K (ISO-28927-2) 0.8 m/s²
Socket retainer Hole (P-Anvil)
Pulse type 2-blade
Bolt size M6  1/4
