FL-5D-30

FL-5D-30

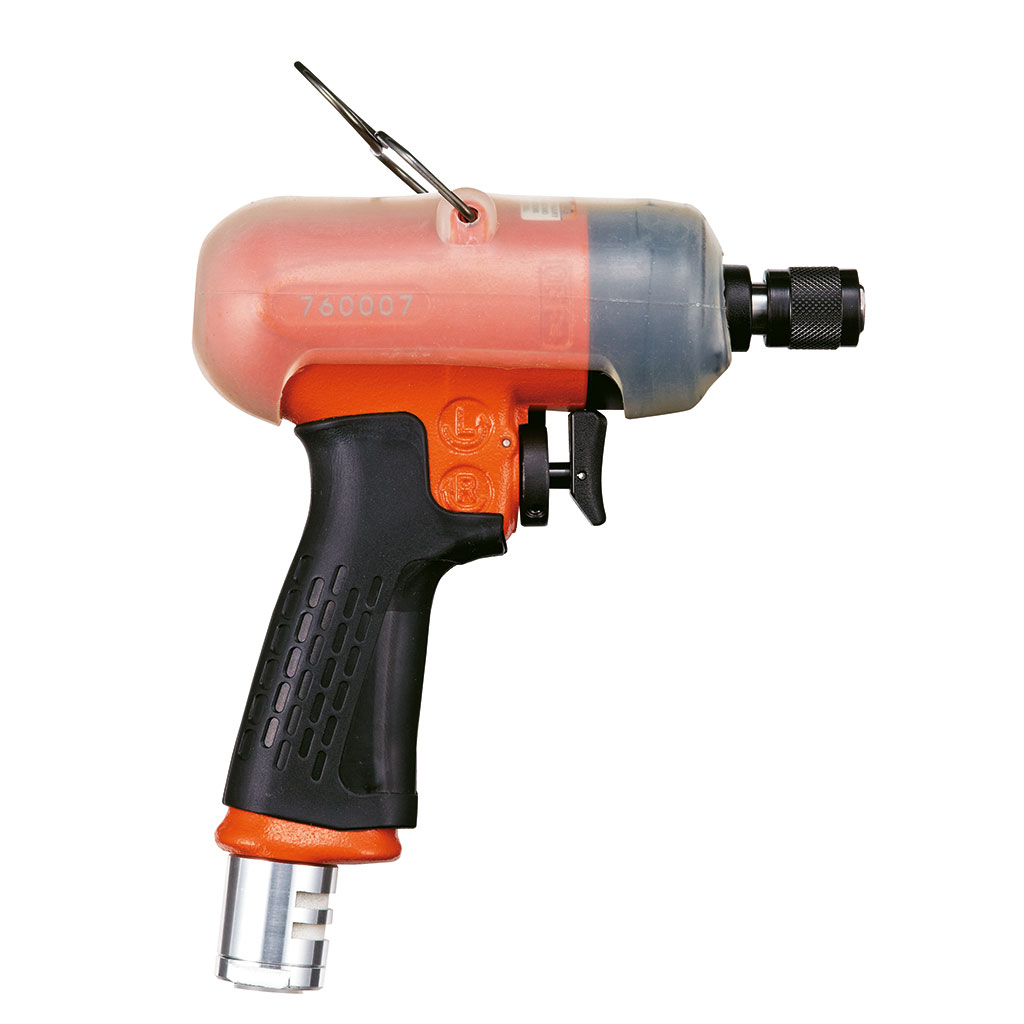

 FL-5D-30 - Versatile, compact, long life, for long bit

Part number 5412105353
Model FL-5D-30
Handle type Pistol
Square drive Hex 1/4" Hex 6.35
Square drive Hex 6.35 mm Hex 1/4
Working Torque Range (fwd) 18 - 32 Nm 13.3 - 23.6
Free speed 6300 rpm
Net weight 0.79 kg 1.74 lb
Length 140 mm 5.51"
Side to center 22 mm 0.87"
Actual air consumption 6.7 l/s 14.1 cfm
Min. hose size 6.3 mm 1/4"
Sound pressure 79.2 db(A)
Sound Power 90.2 db(A)
Vibration α (ISO-28927-2) < 2.5 m/s²
Vibration K (ISO-28927-2) 0.7 m/s²
Socket retainer Bit Shank (Hex)
Pulse type 2-blade
Bolt size M6 - M8  1/4- -5/16
