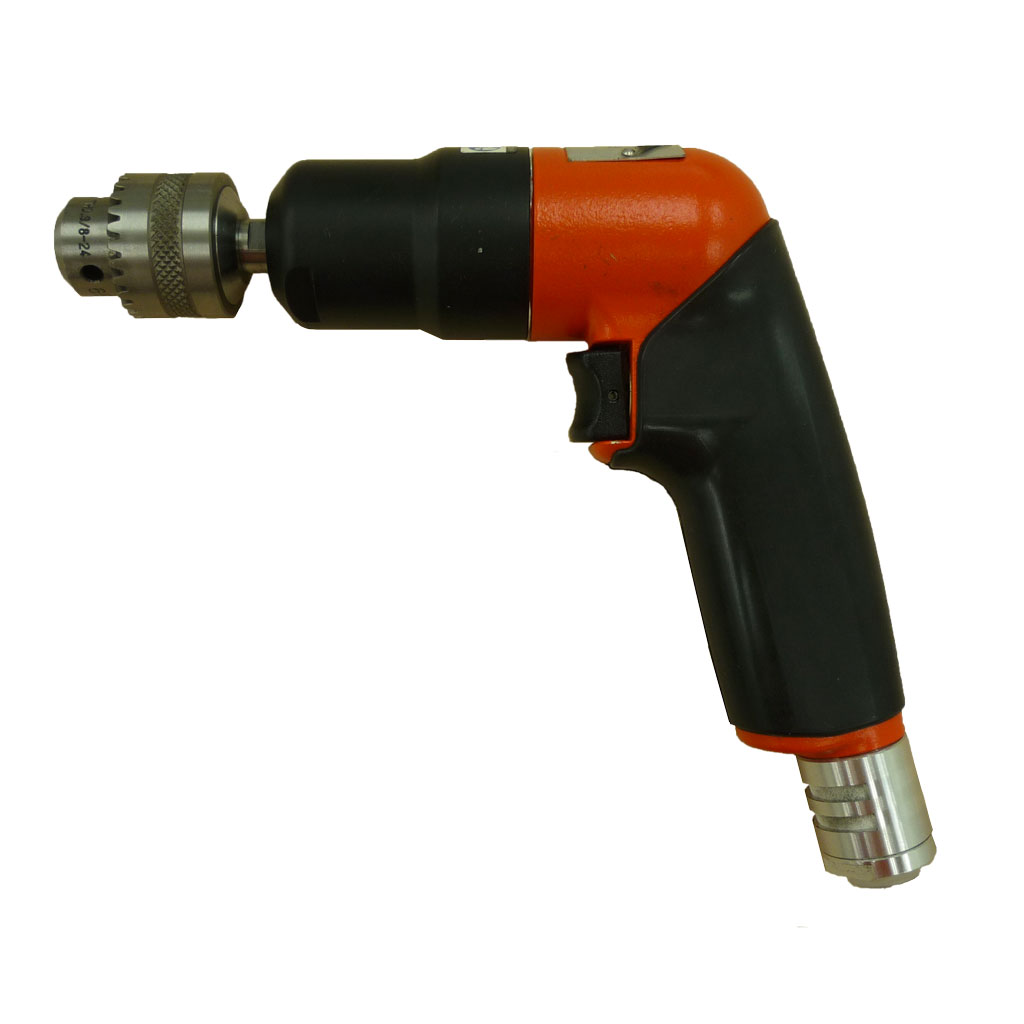

FRD-6PH-2 TH N - Precision & robust, standard chuck, NPT inlet| Part number | 5412104340 | |
| Model | FRD-6PH-2 TH N | |
| Spindle or chuck type | 3/8-24UNF | |
| Chuck capacity | 6.5 mm | 1/4" |
| Drilling capacity | 5 mm | 3/16" |
| SideToCenter_mm | 21 mm | 0.828125" |
| Free speed | 4300 rpm | |
| Power | 340 W | |
| Stall torque | 2.7 Nm | 2 ft.lbs |
| Net weight | 0.9 kg | 1.98 lb |
| Length | 198 mm | 7.8" |
| Free speed air consumption | 10 l/s | 20.8 cfm |
| Min. hose size | 9.5 mm | 3/8" |
| Sound pressure | 73 db(A) | |
| Sound Power | 83.7 db(A) | |
| Vibration α (ISO-28927-5) | < 2.5 m/s² | |
| Vibration K (ISO-28927-5) | 0.74 m/s² | |
