| Part number |
5412104838 |
| Model |
FA-20-2F 6 N EC |
| Type of wheels |
Mounted point |
| Spindle thread |
3/8-24UNF |
| Collet size |
6 mm |
0.236" |
| Max diameter of mounted point |
38 x 13 x - |
1-1/2 x 1/2 x - |
| Free speed |
15000 rpm |
| Power |
283 W |
0.38 hp |
| Side exhaust |
Side exhaust |
| Length |
186 mm |
7.3" |
| Net weight |
0.7 kg |
1 1/2 lb |
| Side to center |
17.5 mm |
0.69" |
| Height over spindle |
83 mm |
3.27" |
| Sound pressure |
86.9 db(A) |
| Sound Power |
97.9 db(A) |
| Vibration α (ISO-28927-12) |
3.1 m/s² |
| Vibration K (ISO-20643) |
1.5 m/s² |
| Vibration α (ISO-28927-1) |
3.1 m/s² |
| Vibration K (ISO-28927-1) |
1.5 m/s² |
| Free speed air consumption |
9.3 l/s |
19.8 cfm |
| Min. hose size |
9.5 mm |
3/8" |

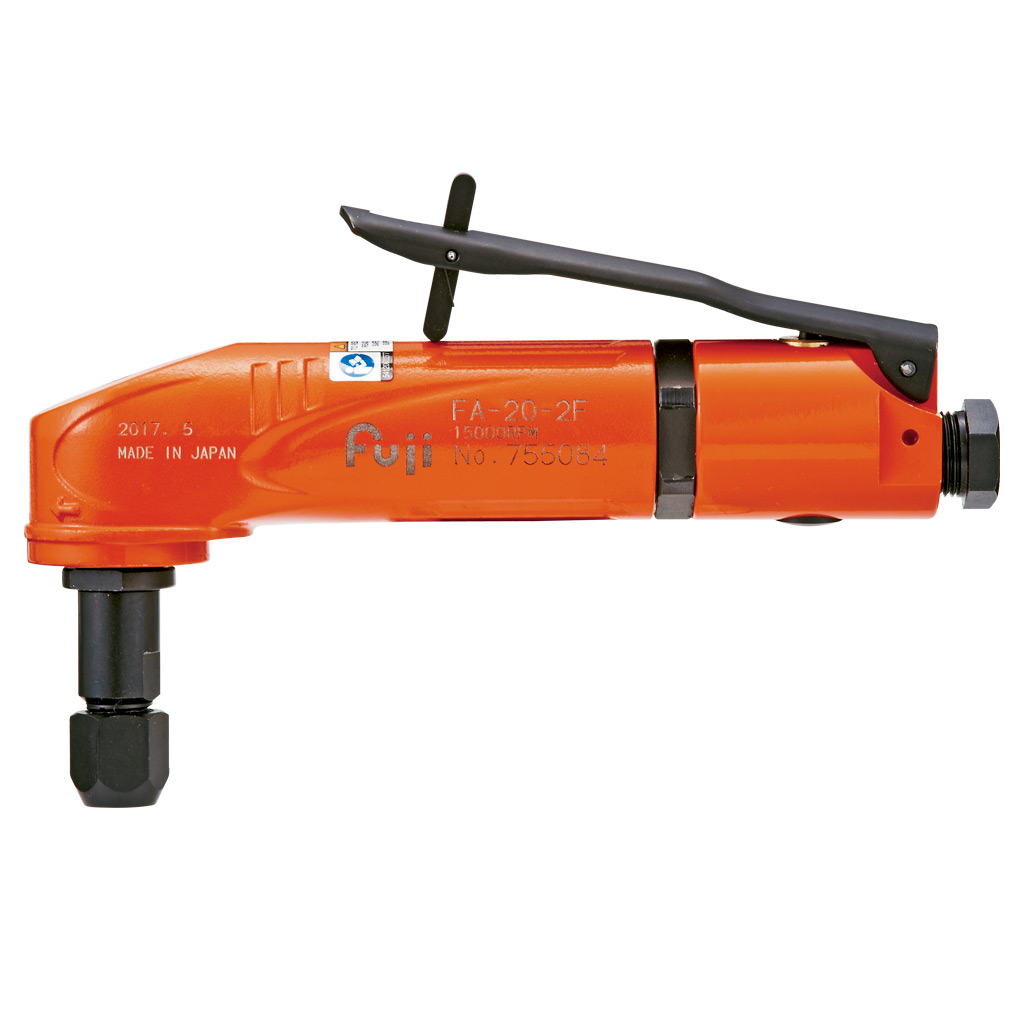

FA-20-2F 6 N EC - Compact, low profile, Robust
