| Part number |
5412105871 |
| Model |
FG-26H-10F 6 EC |
| Type of wheels |
Mounted point/Carbide burr |
| Throttle |
Lock-off lever |
| Collet size |
6 mm |
0.236" |
| Max diameter of carbide burrs |
13 mm |
1/2" |
| Max diameter of mounted point |
25 mm |
1" |
| Free speed |
24000 rpm |
| Power |
275 W |
0.369 hp |
| Side exhaust |
Side exhaust |
| Length |
179 mm |
7.05" |
| Net weight |
0.53 kg |
1.17 lb |
| Side to center |
17.7 mm |
0.697" |
| Sound pressure |
87.6 db(A) |
| Sound Power |
98.6 db(A) |
| Vibration α (ISO-28927-12) |
< 2.5 m/s² |
| Vibration K (ISO-20643) |
1.1 m/s² |
| Free speed air consumption |
9.67 l/s |
20.5 cfm |
| Min. hose size |
9.5 mm |
3/8" |

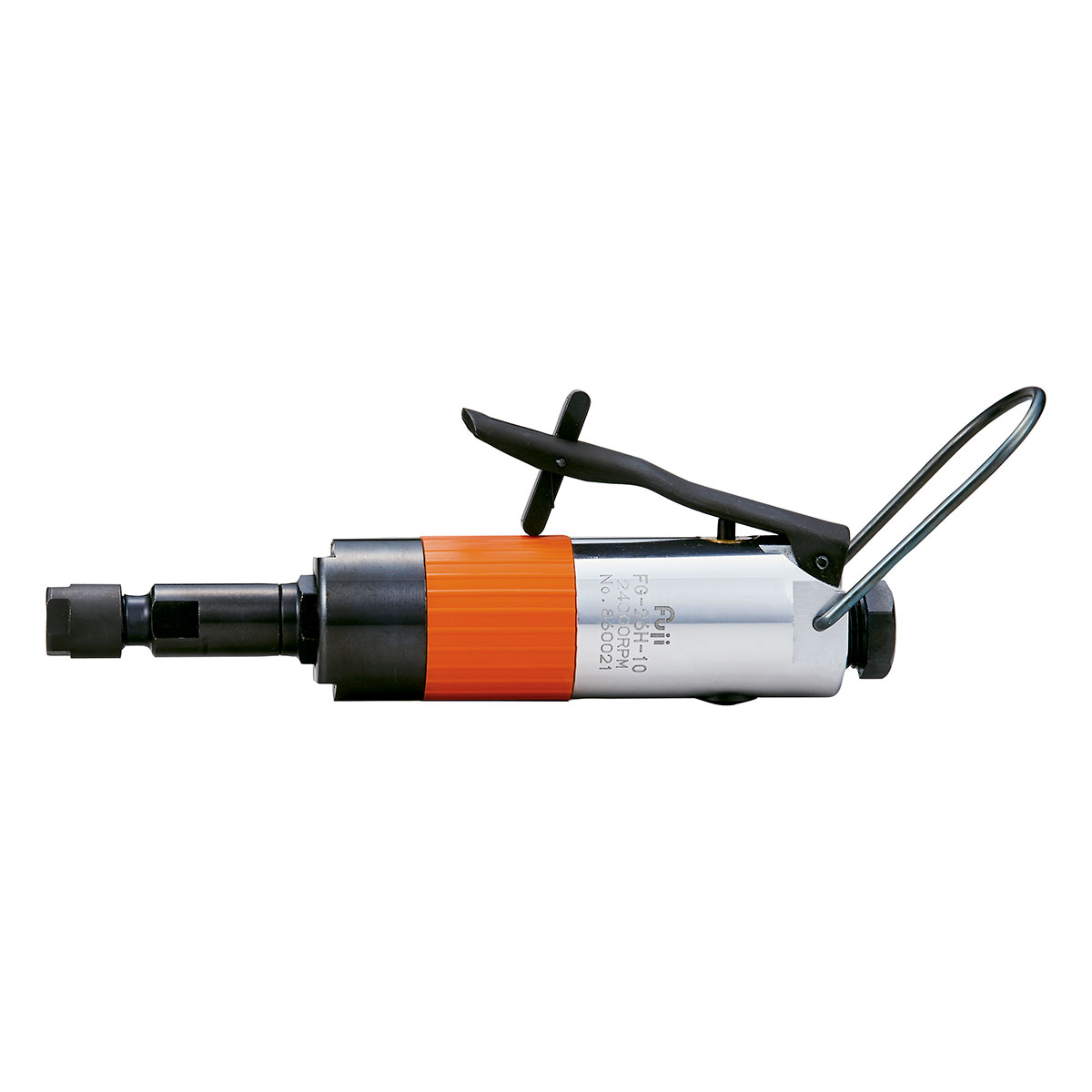

FG-26H-10F 6 EC - Compact & precision, 6mm collet, CE
