FA-20-1

FA-20-1

Part number 5412104835

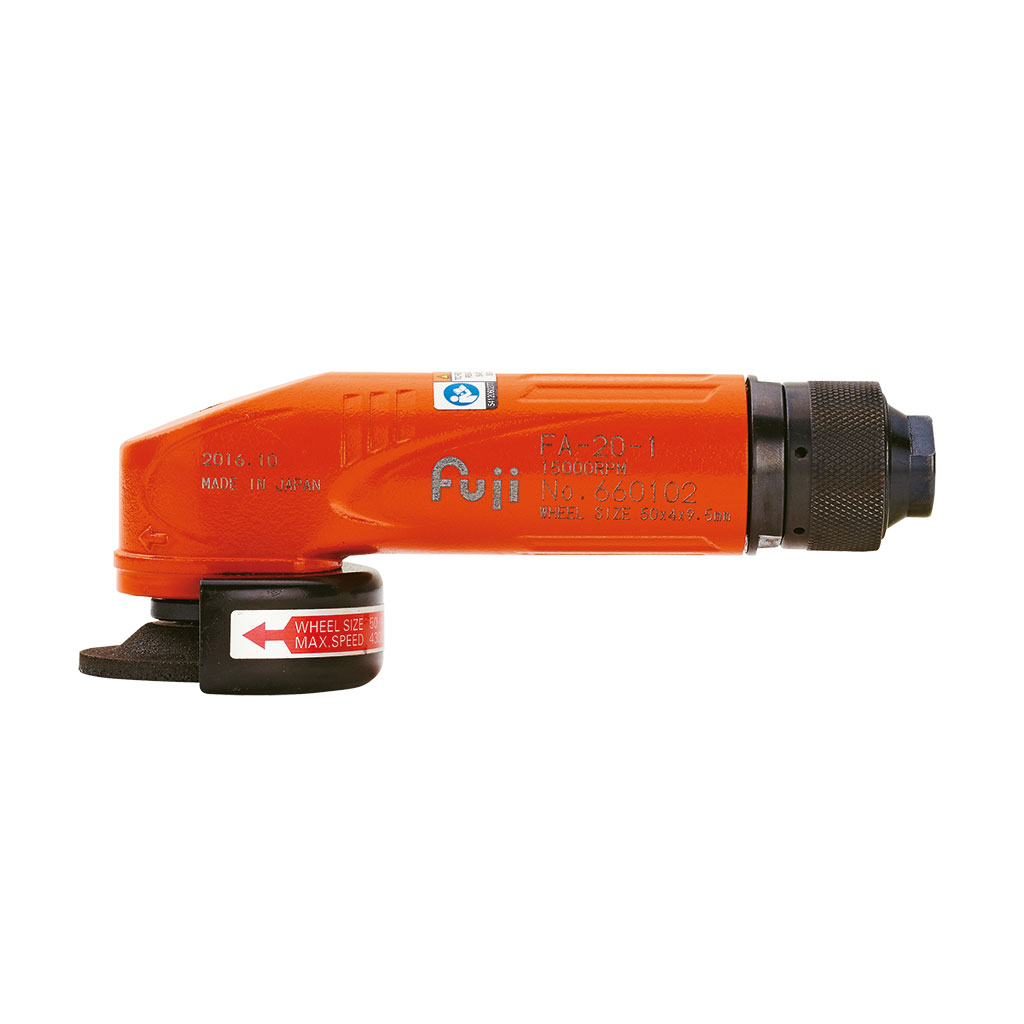

Model FA-20-1
Type of wheels Type 27
Spindle thread 1/4-28UNF
Wheel size 50 x 4 x 9.5  2 x 5/32 x 3/8
Free speed 15000 rpm
Power 294 W 0.4 hp
Side exhaust Side exhaust
Length 157 mm 6.2"
Net weight 0.6 kg 1.3 lb
Side to center 17.5 mm 0.69"
Height over spindle 40.5 mm 1.59"
Sound pressure 88.2 db(A)
Sound Power 99.1 db(A)
Vibration α (ISO-28927-12) 2.7 m/s²
Vibration K (ISO-20643) 1.5 m/s²
Vibration α (ISO-28927-1) 2.7 m/s²
Vibration K (ISO-28927-1) 1.5 m/s²
Free speed air consumption 9.8 l/s 20.8 cfm
Min. hose size 9.5 mm 3/8"
